K-Span

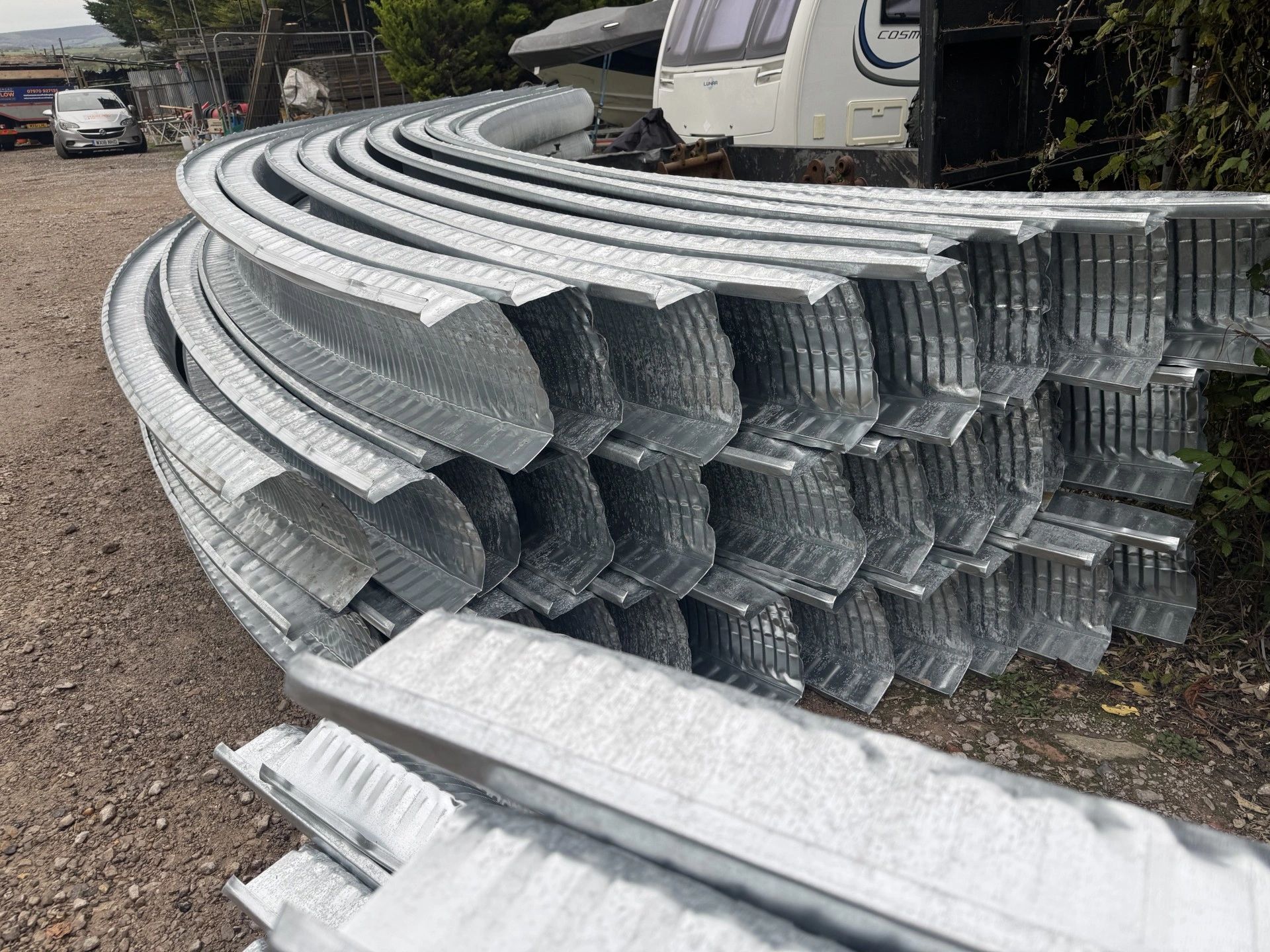

K-Span corrugated panels are fully self-supporting, removing the need for costly steel or timber frames.
Manufactured in the UK and starting at just £15/m², they help you save money, cut waste, and build in half the time.
From farm shelters to large industrial units — custom spans available up to 24m.
.
Panel Specifications
- Material: Hot-dip galvanised steel (HDG S220 Z275)
- Thickness: 0.7 mm (standard) / 0.9 mm (optional)
- Profile width: 305 mm effective coverage per panel
- Span range: 2 m – 12 m (verify loads / exposure)
- Finish: Natural galvanised / optional PPGI colour
K-Span Specifications & Installation
Technical specifications and installation guidance for K-Span self-supporting steel canopies by Steel Hut UK
Installation Overview
K-Span panels are roll-formed on site and joined with self-locking seams, eliminating rafters or purlins. Standard end-walls may be framed with light-gauge steel or masonry as required.
Base & Fixings
- Concrete slab or ground beam with expansion bolts or anchor plates.
- Typical fixing: M10 anchor @ 600 mm centres (verify b
Installation Overview
K-Span panels are roll-formed on site and joined with self-locking seams, eliminating rafters or purlins. Standard end-walls may be framed with light-gauge steel or masonry as required.
Base & Fixings
- Concrete slab or ground beam with expansion bolts or anchor plates.
- Typical fixing: M10 anchor @ 600 mm centres (verify by engineer).
Design & Load Notes
Refer to manufacturer calculations for snow and wind loads. All spans and profiles comply with UK BS 5950/EN 1993 standards when installed per guidelines.
